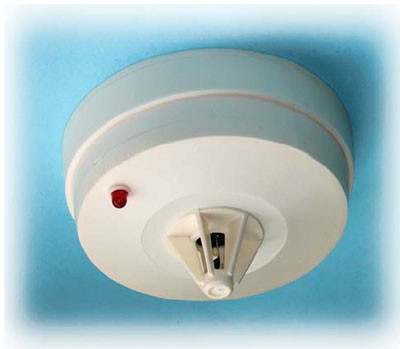

MODEL : JIC-666

Features:

Safety is secured due to use of ELECTRONICS DUAL THERMAL components.

Suitable for use in multiple stations or single Station.

With relay output dry signal N/O, N/C or out put monitoring

Excellent stability and high sensitivity.

PIN connections easy for installation

Blinking LED for standby monitoring.

Suitable for rooms with small-scale temperature change, such as offices, bedrooms, department stores, storehouses and hotels.

General specifications:

DETECTION	Electronics Dual Thermal Differential
SENSITIVITY	Conform to CNS 8874Z2041
TEMPERATURE	- 20⁰C to + 70⁰C
HUMIDITY	95%R.H. max.
DIMENSION	ψ104 × H62mm
WEIGHT	Around 170g
BASE	30~80m/m for installation

Operations:

POWER RATING	10~15VDC Polarity
POWER SUPPLY	From Security Panel
ACTION SIGNAL	N/O, N/C and Monitoring Output
STANOY CURRENT	2mA max.
ACTION CURREN	40mA max.
RESET FUNCTION	Self-Restoring
MONITORING	LED Blinking once per 10 sec
ACTION INDICATIN	LED ON
STANDARDS	Conform to CNS STANDARD
TERMINAL PINS	1. RELAY COMMON 2. N/C 3. N/O 4. POWER (+) 5. POWER (-) 6. MONITORING OUTPUT

Location to be avoid:

	Effectual Detection Range: Below the height 4M, 4~8M from the ground
	Fire-Fighting Buildings: 70M², 40M² according the above height
	Other Buildings Set Range: 40M², 25M² as above
